CH Series

Truss Lifting Electric Hoist is a specialized lifting hoist powered by an electric motor, integrating reduction transmission, braking, chain hoisting and safety protection devices in one unit.

Get a Free Quote

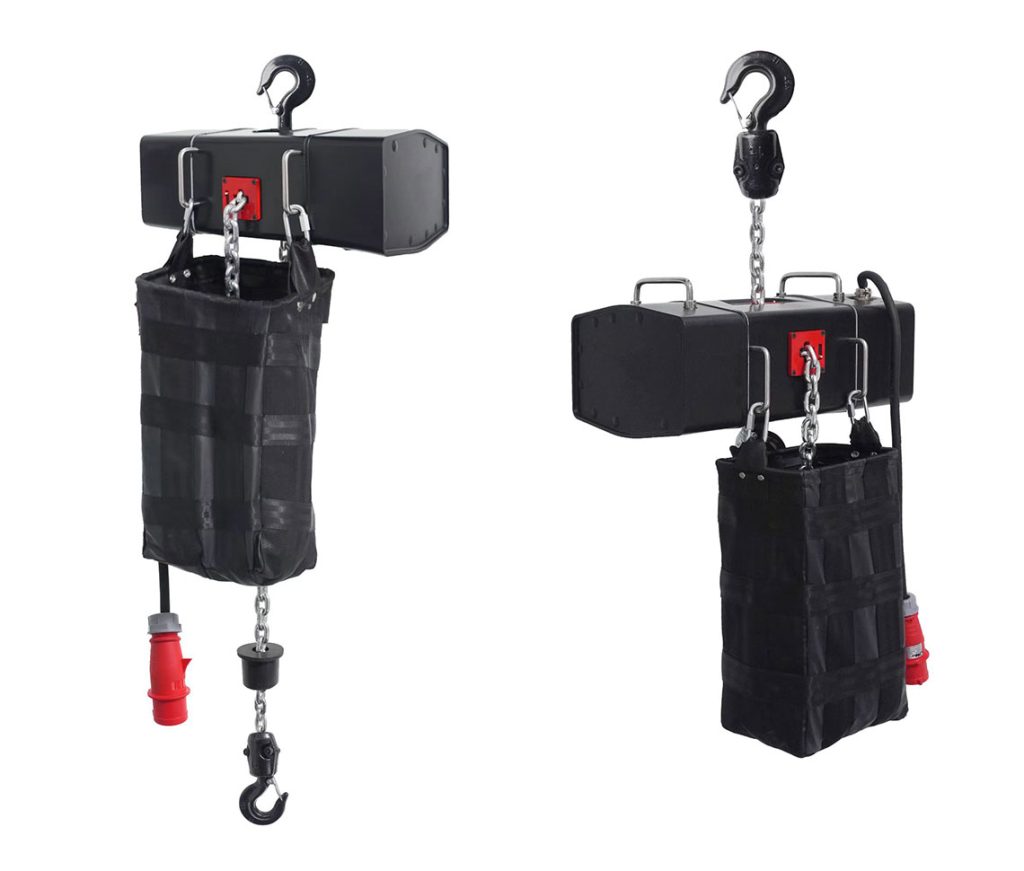

Professional Electric Chain Hoist for Stage Lifting

The CH Series is a high-performance stage electric hoist specifically engineered for the professional entertainment industry. It integrates a powerful motor, precision reduction transmission, a reliable braking system, and advanced safety protections into a compact, robust unit. Designed to meet the rigorous demands of touring, theater installations, and large-scale event production, the CH SERIES is the ultimate solution for safe and efficient truss lifting and lowering.
Get Latest Price

Key Features

  • Designed for High-Frequency Touring

    Stage equipment undergoes constant transportation between theaters, exhibition centers, and outdoor venues. The CH SERIES is built with a reinforced body that withstands the bumps, friction, and impacts of frequent loading and unloading, ensuring structural integrity in the most demanding logistics environments.

  • Premium Matte Finish for Stage Stealth

    The hoist features a specialized black matte finish. Not only does this provide a sleek, professional look, but it also prevents unwanted light reflections during performances, allowing the equipment to remain "invisible" in the rafters.

  • Easy Maintenance & Durability

    On-site environments often involve dust, oil, and stage paint. The CH SERIES body material is treated for easy cleaning, allowing contaminants to be wiped away quickly without leaving traces. This feature reduces maintenance costs and significantly improves equipment turnover efficiency.

  • Superior Environmental Adaptability

    Engineered to perform consistently across diverse conditions—from high-humidity outdoor stages to temperature-controlled concert halls—the CH SERIES resists aging and component failure caused by environmental stressors.

  • Precision and Safety

    Equipped with a high-strength load chain and a responsive braking system, the CH SERIES ensures millimeter-perfect positioning and maximum overhead safety for lighting grids, LED screens, and truss structures.

  • Advanced Dual-Limit Safety Protection

    To prevent over-travel and ensure equipment safety, the CH SERIES is equipped with precision upper and lower limit switches. This system automatically stops the hoist at the designated boundaries, preventing chain jams or structural damage caused by operator error.

Physical Dimensions & Clearance

  • Main Body Length: 420mm

  • Main Body Width: 256mm

  • Main Body Height: 170mm

  • Hook Opening: 30mm

  • Hook Width: 106mm

  • Handle/Mount Width: 286mm

TYPE Lifting Speed Lifting Height Lifting Chain / Falls Motor Power Test Load Electrical Source Dead Weight Dimensions (L×W×H)
CH-0.5T 8m/min 15m Φ7×20 / 1 (Grade 80) 0.9kW 1.5x 380V/50Hz 30kg 420×256×170 mm
CH-1T 4m/min 15m Φ7×20 / 1 (Grade 80) 0.75kW 1.5x 380V/50Hz 30kg 420×256×170 mm
